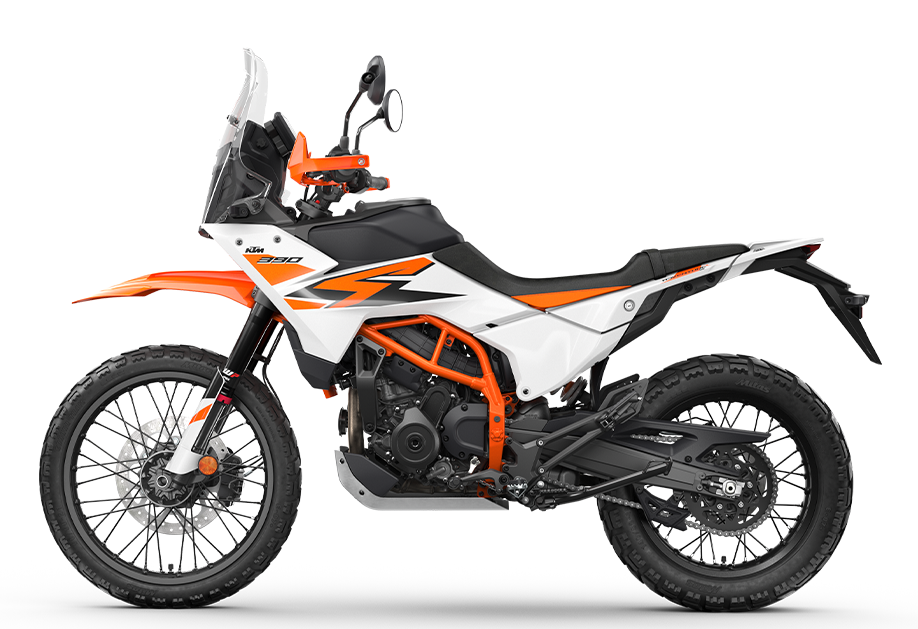

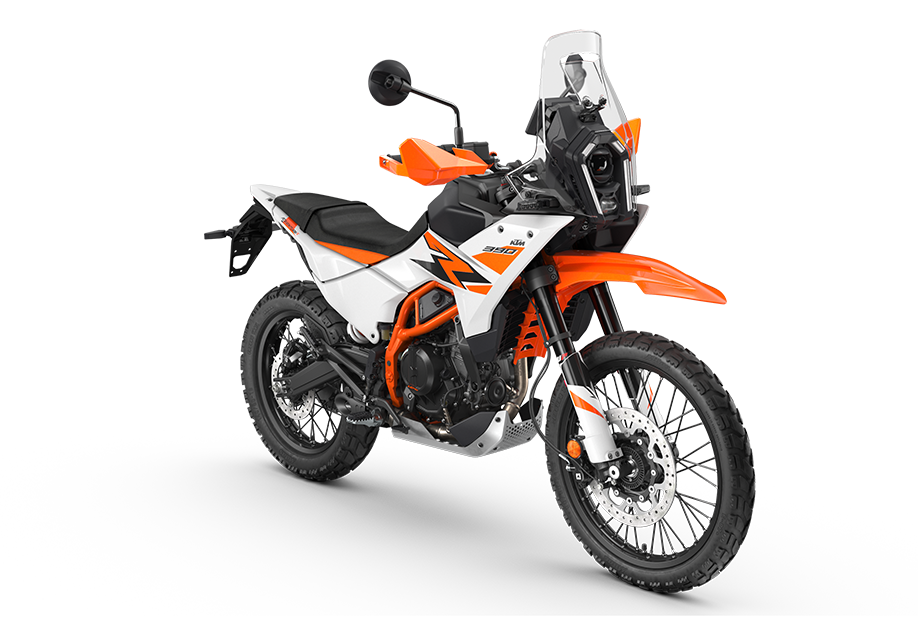

KTM 390 Adventure R KTM
| Primary Drive | 86:33:00 |
| Torque | 39 Nm |
| Transmission | 6-speed |
| Cooling | Liquid cooled |
| Secondary Gear Ratio | 46:14:00 |
| Power in KW | 33 kW |
| Power in HP | 45 PS |
| Starter | Electric starter |
| Stroke | 64 mm |
| Traction Control | MTC (lean angle sensitive, disengageable) |
| Bore | 89 mm |
| Clutch | PASC slipper clutch, mechanically operated |
| CO2 Emissions | 79 g/km |
| Compression Ratio | 12.6 |
| Displacement | 398.7 cm |
| EMS | Bosch EMS with RBW |
| Engine Oil | Motorex Formula 4T 15W/50 |
| Design | 1-cylinder, 4-stroke engine |
| Fuel Consumption | 3.4 l/100 km |
| Fuel-mixture Generation | Bosch EFI (throttle valve 46 mm) |
| Lubrication | Wet sump |
| Weight (without fuel) | 165 kg |
| Tank Capacity (approx.) | 14 l |
| Wheelbase | 1481 mm |
| Front Brake Disc Diameter | 320 mm |
| Rear Brake Disc Diameter | 240 mm |
| Front Brake | Floating disk, Bybre radial calipers with 2 pistons |
| Rear Brake | ByBre, single-piston, floating caliper, brake disc |
| Chain | 520 X-Ring |
| Frame Design | Steel trellis frame, powder coated |
| Front Suspension | WP APEX 43 |
| Ground Clearance | 272 mm |
| Handlebar | Aluminum |
| Rear Suspension | WP APEX Split Piston |
| Seat Height | 870 mm |
| Steering Head Angle | 62.9 |
| Rear Subframe Design | Steel trellis frame, powder coated |
| Suspension Travel (Front) | 230 mm |
| Suspension Travel (Rear) | 230 mm |
| Trail | 110 mm |
| Tyre Dimensions (front/rear) | 90/90; 140/80 |
| Wheels | 1.85 x 21"; 2.5 x 18" |
| Front Wheel Diameter | 21 " |
| Rear Wheel Diameter | 18 " |
| Front Wheel Width | 1.85 " |
| Rear Wheel Width | 2.5 " |
| Variant | Ex-Showroom Price | Spec |
|---|---|---|
| Vibrant Orange | ₹ 3,67,699 | - |
